| ITEM NO. |
| |||
| JGAI1301 | 1 | Spline Alternator Combination Bit Socket (W/33 Teeth Hex Reaction Nut) 1/2″ Dr. x M10, L=110mm, Hex: 17mm | ||
| 1 | Star Alternator Combination Bit Socket (W/33 Teeth Hex Reaction Nut) 1/2″ Dr. x T50, L=110mm, Hex: 17mm | |||
| 2 | 10mm Hex Shank Hexagon Bits 8mm & 10mm (L=75mm) | |||
| 2 | 10mm Hex Shank Star Bits T40 & T50 (L=75mm) | |||
| 2 | 10mm Hex Shank Spline Bits M8 & M10 (L=75mm) | |||
| 1 | Quick Change Bit Holder 1/2″ Dr. x 10mm (Hex) | |||
| 1 | 33 Teeth Hex Reaction Nut Hex: 17mm, O.D. 19.5mm, I.D. 11.8mm L=30mm | |||
| 1 | 33 Teeth Hex Reaction Nut Hex: 22mm, O.D. 19.5mm, I.D. 11.8mm L=30mm | |||
| 1 | Hexagon Reaction Nut Hex: 22mm, I.D. 11.8mm L=32mm | |||
| 1 | 4 Pin Round Reaction Nut with Hex Tip Hex: 17mm , O.D. 35mm, I.D. 11.8mm L= 37mm | |||

Engine Series
13PCS Alternator Pulley Remover Kit
Item no.
WhatsApp Enquiry
Your message includes the brand, product name, item number and this page link. Price and availability on request.
- ITEM NO: JGAI1301

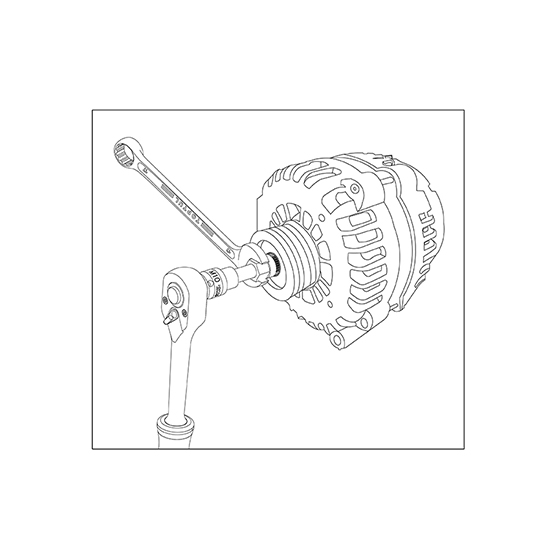

- Designed for the easy removal of alternator free-wheel drive pulleys either on or off the vehicle
- Locks the alternator, allowing the central locking bolt of the pulley to be released
- Applications: BMW, VW, Audi, Mercedes, Renault, Ford, Porsche, Fiat and etc.
BLOW CASE: W245x D145 x H45 (mm)
