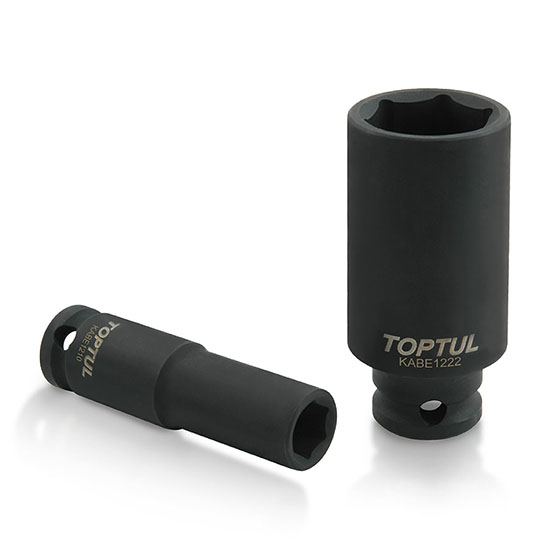

3/8" DR. 6PT Flank Deep Impact Sockets - METRIC
3/8" DR. 6PT Flank Deep Impact Sockets - METRIC - Image 2

3/8″ DR. 6PT Flank Deep Impact Sockets – METRIC

  • ITEM NO: KABE series
  • Black Phosphate Finished
  • CR-MO
  • DIN 3121
  • METRIC
DEALERS
Add to Enquiry
Categories: ,

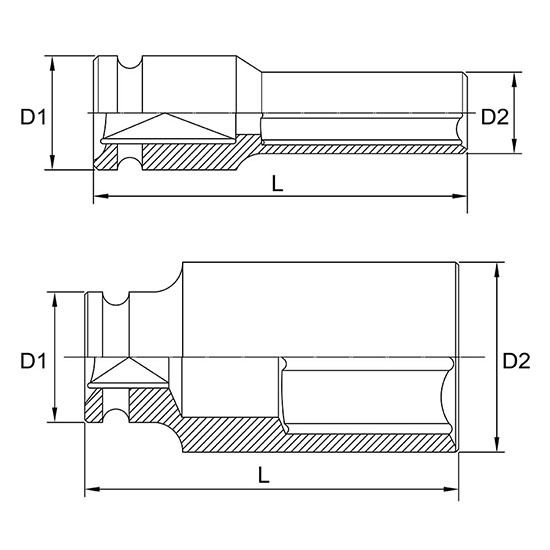

Features

DRIVE TYPE ITEM NO. SIZE
(mm)		 L
(mm)		 D1
(mm)		 D2
(mm)		 BOX
(PCS)		 CTN
(PCS)
3/8″
10mm sq.
 A
 KABE1208 8 65 19 13.5 10 160
KABE1209 9 65 19 15.0 10 160
KABE1210 10 65 19 16.0 10 160
KABE1211 11 65 19 17.5 10 160
KABE1212 12 65 19 19.0 10 160
KABE1213 13 65 22 20.0 10 160
KABE1214 14 65 22 21.6 10 160
B
 KABE1215 15 65 22 22.0 10 100
KABE1216 16 65 22 24.0 10 100
KABE1217 17 65 22 25.3 10 100
KABE1218 18 65 22 26.0 10 100
KABE1219 19 65 22 27.8 10 100
KABE1220 20 65 22 28.0 5 50
KABE1221 21 65 22 30.0 5 50
KABE1222 22 65 22 32.0 5 50
