Digital Torque Adapter
Digital Torque Adapter - Image 2
Digital Torque Adapter - Image 3
Digital Torque Adapter - Image 4

Digital Torque Adapter

  • ITEM NO: DTA-200N
  • Torque Accuracy: CW ±2% & CCW ±2% tolerance of the set scale value
  • Precise reading accuracy for a minimum 5000 tightening cycles

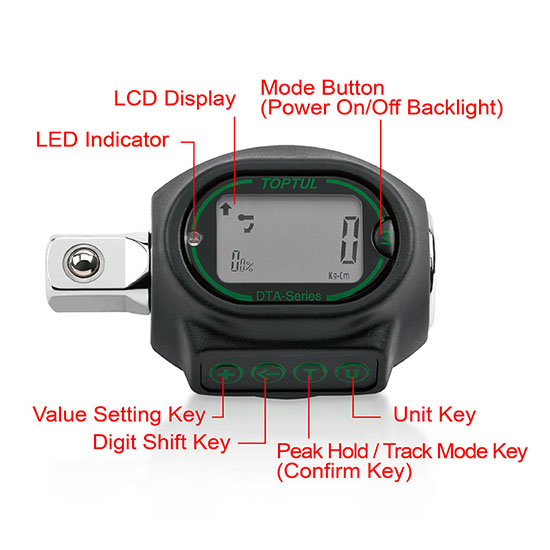

  • Operating Mode: Peak hold mode (peak value detection) / Track mode (continuous display)
  • Torque Unit Selection: Nm, Ft-Lb, In-Lb, Kg-m, Kg-cm
  • Storage Memory: 10 Sets
  • Low battery indicator and auto shut off (after 3 minutes)
  • Large LCD Display for clear reading
  • Tested and certified according to DIN EN ISO 6789, BS EN 26789

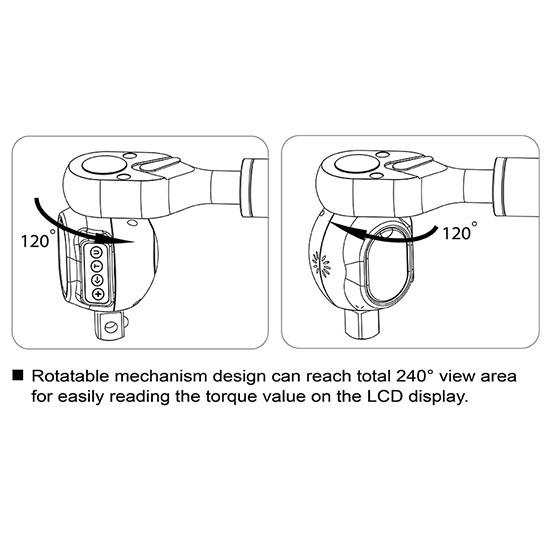

  • Rotatable mechanism design can reach total 240° view area for easily reading the torque value on the LCD display.
  • Buzzer & LED indication for pre-settable target torque.
DEALERSDOWNLOAD
Add to Enquiry
Categories: ,

Features

ITEM NO. DRIVE Torque Range L
(mm)		 CTN
(PCS)
(Nm) (Ft-Lb) (In-Lb) (Kg-m) (Kg-cm)
DTA-200N 1/2″ 40~200 29.5~147.6 354~1770 4.08~20.4 408~2040 75 48



Torque Accuracy CW ±2% / CCW ±2%
Storage Memory 10 Sets
Torque Unit Selection Nm, Ft-Lb, In-Lb, Kg-m, Kg-cm
Display Resolution 0.1 Nm, 0.1 Ft-Lb, 1 In-Lb, 0.01 Kg-m, 1Kg-cm
Operating Mode Peak Hold Mode / Track Mode
Working Temperature -10°C ~ 60°C
Storage Temperature -20°C ~ 70°C
Humidity 0 ~ 90%
Battery 3V CR2032 x 1pc
Battery Life 50 Hours
Auto Shut Off 3 Minutes (when not in use)
