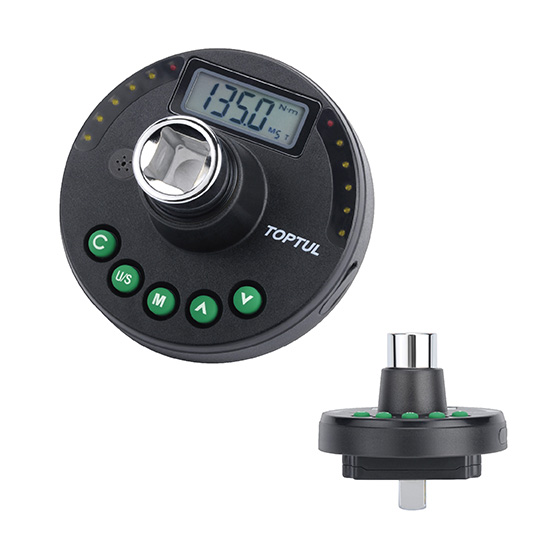

Digital Torque / Angle Adapter
Digital Torque / Angle Adapter - Image 2
Digital Torque / Angle Adapter - Image 3

Digital Torque / Angle Adapter

  • ITEM NO: DTA -135A4 / DTA-200A4 / DTA-340A4
  • Torque Accuracy: CW ±3% & CCW ±4% tolerance of the set scale value
  • Angle Accuracy: ±2° (rotating 90° at speed of 30°/sec)
  • Operating mode: Peak hold mode (peak value detection) / Track mode (continuous display)
  • Unit Selection: Nm, Ft-Lb, In-Lb, Kg-cm, degree
  • Rotation angle range up to 999°
  • Storage Memory: 50 Readings

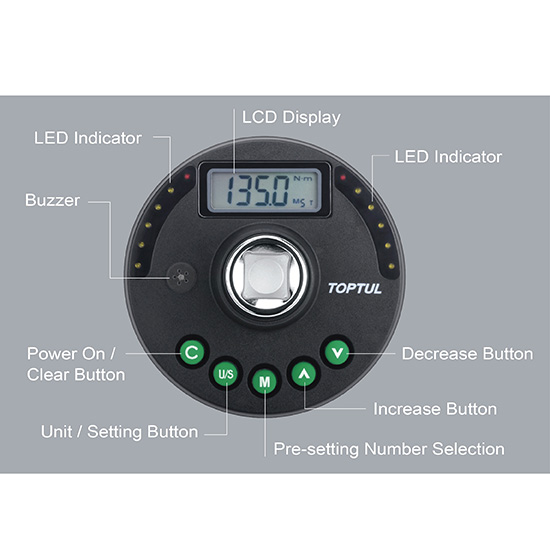

  • 12 way lights and buzzer when torque value is reached
  • Low battery indicator and auto shut off (after 2 minutes)
  • Tested and certified according to DIN EN ISO 6789, BS EN 26789, ASME B107.28
DEALERS
Add to Enquiry
Categories: ,

Features

ITEM NO. DRIVE Torque Range L
(mm)		 CTN
(PCS)
(Nm) (Ft-Lb) (In-Lb) (Kg-cm)
DTA-135A4 1/2″ 6.8~135 5.0~99.5 60~1195 69~1378 80 18
DTA-200A4 1/2″ 10~200 7.4~147.5 88~1770 102~2041 80 18
DTA-340A4 1/2″ 17~340 12.5~250.7 150~3009 173~3469 80 18



Torque Accuracy CW ± 3% / CCW ±4 %
Angle Accuracy ± 2° (rotating 90° at speed of 30°/sec)
Storage Memory 50 Readings
Unit Selection Nm, Ft-Lb, In-Lb, Kg-cm, degree
Operating Mode Peak Hold Mode / Track Mode
Working Temperature -10℃ ~ 60℃
Storage Temperature -20℃ ~ 70℃
Humidity Up to 90% non-condensing
Battery 1.5V AAA x 2pcs
Battery Life 24 Hours
Auto Shut Off 2 Minutes (when not in use)
