Double Ring Wrench 45° Offset – METRIC (Satin Chrome Finished)

ITEM NO: AAEH series

  •  Chrome Vanadium Steel Material
  •  45° offset ring end in design for convenient operation in recess
  •  Professional quality for maximum durability and corrosion resistance
  •  Satin Chrome Finished
  •  METRIC
DEALERS

Features

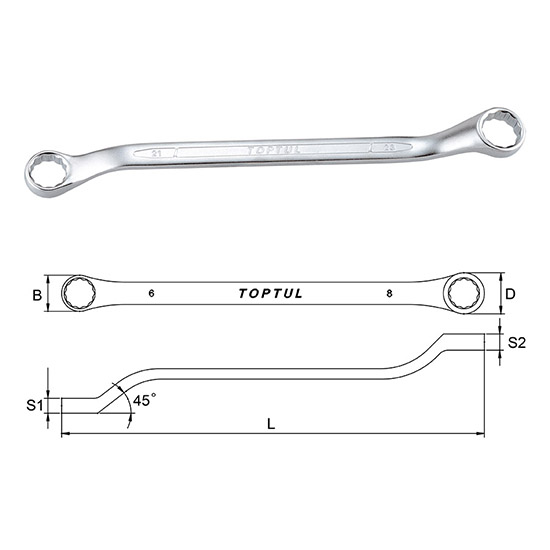

ITEM NO. SIZE
(mm)
L
(mm)
B
(mm)
D
(mm)
S1
(mm)
S2
(mm)
BOX
(PCS)
CTN
(PCS)
Satin
AAEH0607 6×7 165 10.3 12.0 5.2 5.7 10 240
• AAEH0608 6×8 165 10.3 12.7 5.2 5.7 10 240
• AAEH0708 7×8 165 10.3 12.7 5.2 5.7 10 240
AAEH0809 8×9 170 13.5 15.0 5.7 6.2 10 240
AAEH0810 8×10 170 13.5 16.2 5.7 6.2 10 240
AAEH1011 10×11 180 15.2 17.2 6.2 6.7 10 120
AAEH1012 10×12 195 16.5 18.9 6.7 7.2 10 120
• AAEH1113 11×13 206 18.0 21.0 7.7 8.2 10 80
AAEH1213 12×13 206 19.5 21.0 7.7 8.2 10 80
AAEH1214 12×14 206 19.5 21.7 7.7 8.2 10 80
AAEH1415 14×15 232 21.7 23.5 8.2 8.7 10 80
• AAEH1317 13×17 237 21.0 25.7 9.2 9.7 10 80
AAEH1417 14×17 237 22.5 25.7 9.2 9.7 10 80
AAEH1617 16×17 237 23.7 25.7 9.2 9.7 10 80
AAEH1719 17×19 270 26.5 29.2 10.7 11.2 10 80
AAEH1819 18×19 270 27.7 29.2 10.7 11.2 10 80
• AAEH1921 19×21 292 28.7 32.2 11.4 11.9 5 30
• AAEH1922 19×22 292 28.7 32.2 11.4 11.9 5 30
AAEH2022 20×22 292 28.7 32.2 11.4 11.9 5 30
AAEH2123 21×23 327 32.2 34.2 11.9 12.7 5 30
AAEH2224 22×24 327 32.2 34.2 11.9 12.7 5 30
• AAEH2326 23×26 362 34.7 38.2 13.2 13.7 5 30
AAEH2426 24×26 362 34.7 38.2 13.2 13.7 5 30
AAEH2427 24×27 362 34.7 38.2 13.2 13.7 5 30
AAEH2528 25×28 372 39.5 42.1 13.2 14.7 5 30
AAEH2628 26×28 372 39.5 42.1 13.2 14.7 5 30
• AAEH2629 26×29 372 39.5 42.1 13.2 14.7 5 30
• AAEH2729 27×29 380 40.7 45.5 14.7 15.7 5 30
• AAEH2730 27×30 380 40.7 45.5 14.7 15.7 5 30
• AAEH2732 27×32 380 40.7 45.7 14.7 15.7 5 30
AAEH3032 30×32 392 44.7 48.5 16.2 17.7 2 12
• AAEH3034 30×34 402 45.5 51.5 16.5 19.2 2 12
• AAEH3236 32×36 402 48.5 54.5 17.2 19.2 2 12
• AAEH3436 34×36 440 54.5 62.5 18.2 20.2 2 12
• AAEH3641 36×41 440 54.5 62.5 18.2 20.2 2 12
• AAEH3842 38×42 440 54.7 62.7 18.2 20.2 2 12
• AAEH4146 41×46 470 61.7 69.7 19.2 20.7 2 8
• AAEH4650 46×50 510 70.5 76.5 20.7 21.7 2 8
• AAEH5560  55×60 610 83.7 91.7 22.7 23.7 2 4
