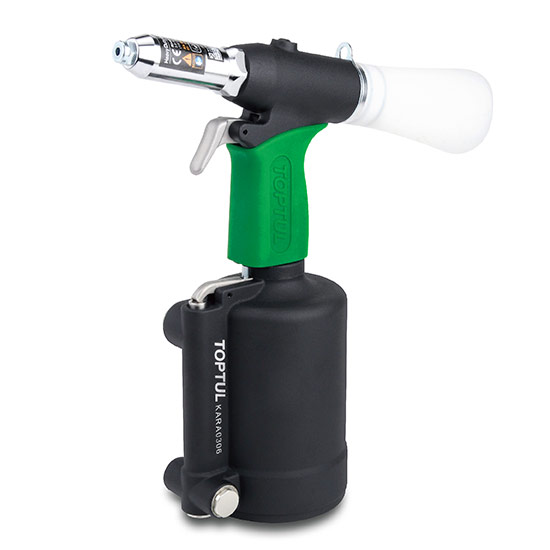

Heavy Duty Air Hydraulic Riveter

Item no.
WhatsApp Enquiry

Your message includes the brand, product name, item number and this page link. Price and availability on request.

  • ITEM NO: KARA0306
  • Suitable for Aluminum/Steel & Stainless Steel rivets
  • Designed for professional riveting and continuous operation
  • Twin air inlet design allows easy operation by right-handed or left-handed users
  • New spent mandrel container to protect operator's eyes and keep working places clean
  • Shock-reducer design to minimize hand fatigue
  • Noise silencer design for working pleasure

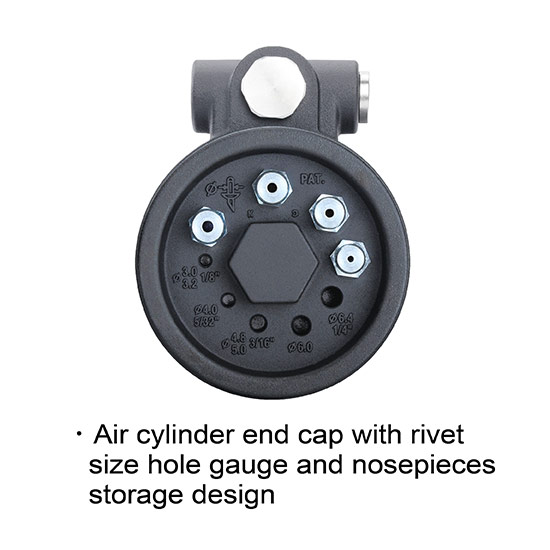

  • Smart nosepieces storage design to avoid losing nosepieces
  • Oil refill hole design for quickly refilling the shortage of hydraulic oil
  • Set includes rivet mandrel collector, two combination wrenches, brush, hydraulic oil injector without oil and one set of extra jaws
Rivet DiameterRivet Material
AluminumSteelStainless Steel (Inox)
3.0/3.2mm or 1/8"●●●
4.0mm or 5/32"●●●
4.8/5.0mm or 3/16"●●●
6.0mm●●●
6.4mm or 1/4"●●●
Official TOPTUL distributor

Specifications

ITEM NO.KARA0306
SPECIFICATIONSCTN: 4
Rivet Diameter3.0/3.2, 4.0, 4.8/5.0, 6.0, 6.4 mm or 1/8″, 5/32″, 3/16″, 1/4″
Stroke Length15.8mm
Traction Power14700 N / 3300 lbf
Air Pressure85~100 PSI (5.9~6.9 BAR)
Air Consumption Per Rivet0.11CFR / 3.1LPR
Air Inlet1/4″ PT
Min. Air Hose 3/8″ I.D.
Overall Length10-13/16″ / 275mm
Net Weight4.65 lbs / 2.11kgs
