ITEM NO: SBBA0620
Premium blade made from JIS SUS420J2 Stainless Steel
Induction hardened & precision ground cutting edges
Unique ergonomic angle design ensures ease of operation and provides better access to narrow spaces

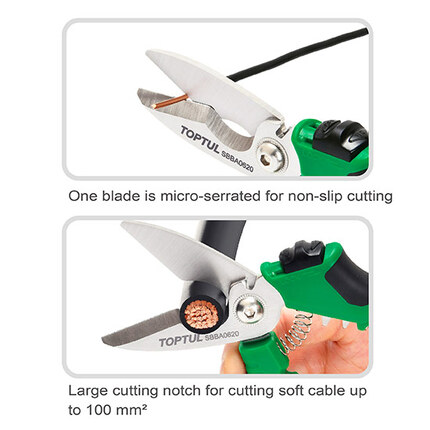

Sharp micro-serrated edge design for anti-slip and clean cutting
Large cable-cutting notch for cutting soft cable up to 100 mm² and allowing easy cable stripping
Also capable of cutting aluminum and copper wires up to Ø3.5mm

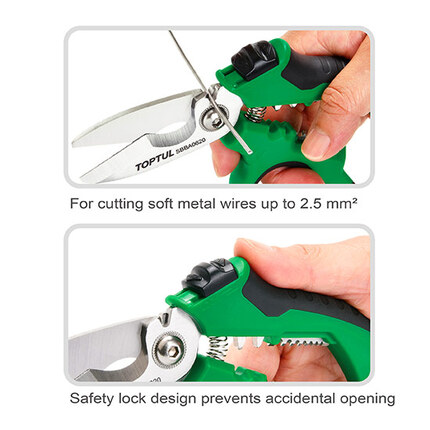

Additional small wire notch on the blade for cutting 2.5mm² soft metal wire

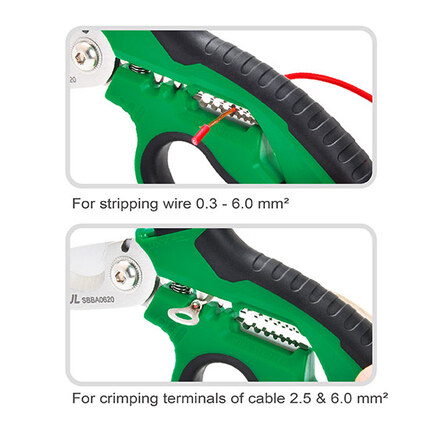

Built-in wire stripper for 10 to 24 AWG wires & integrated crimper for 10 and 14 AWG cable terminals
Features responsive spring-loading cutting action for efficient and smooth operation
Equipped with safety lock ensures pliers stay securely closed when not in use

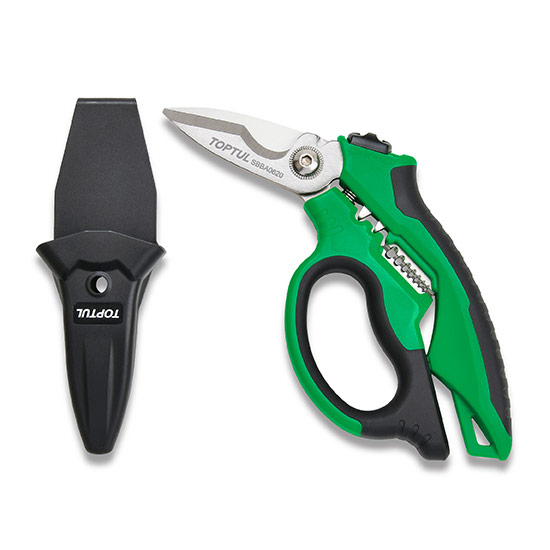

Plastic sheath with belt clip for safe storage
Ideal for cutting soft cable, shearing insulation material and electrical tape, stripping insulation and etc
| ITEM NO. | Blade Length (mm) |
Cutting Cables | Crimping Capacity | Stripping Capacity | Length (mm) |
BOX (PCS) |
CTN (PCS) |
|||
| (mm²) | AWG | (mm²) | AWG | (mm²) | AWG | |||||
| SBBA0620 |
55 | 100 | 3/0 | 2.5 / 6.0 | 14 / 10 | 0.3 / 0.5 / 1.0 / 1.5 / 2.5 / 4.0 / 6.0 | 24 / 20 / 18 / 16 / 14 / 12 / 10 | 205 | 6 | 36 |
