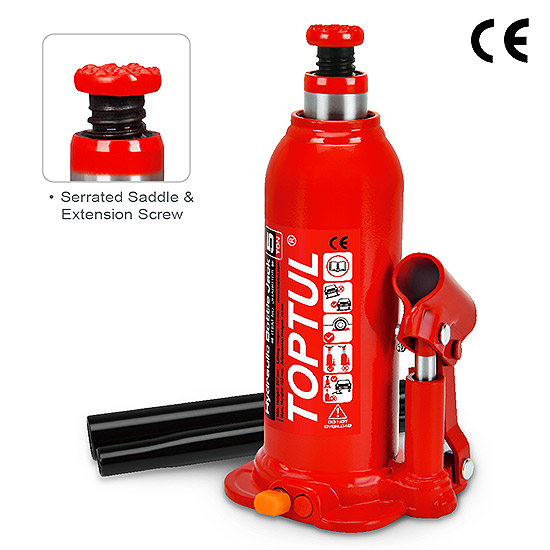

Hydraulic Bottle Jack

  • ITEM NO: JHAB0102 / JHAB0103 / JHAB0105 / JHAB0108

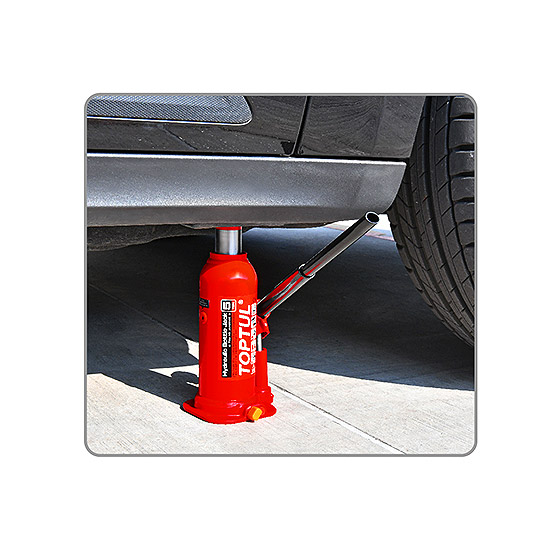

  • Essential equipment to safely lift the vehicles during repair and maintenance
  • Tempered and hardened serrated saddle ensures secure grip
  • Extension screw with safety stop provides added lifting height
  • Housing welding onto the base for increased strength and reduced chance of leakage
  • Heavy duty oversized cast iron bases for increased strength and durability
  • Overload safety valve prevents the damage to cylinder due to overstretch of the ram and overload
  • Removable two-piece handle (8 ton is three-piece)
  • Operating Temperature: -40°C ~ 60°C
  • Manufacturing according to EN 1494
DEALERS

Features

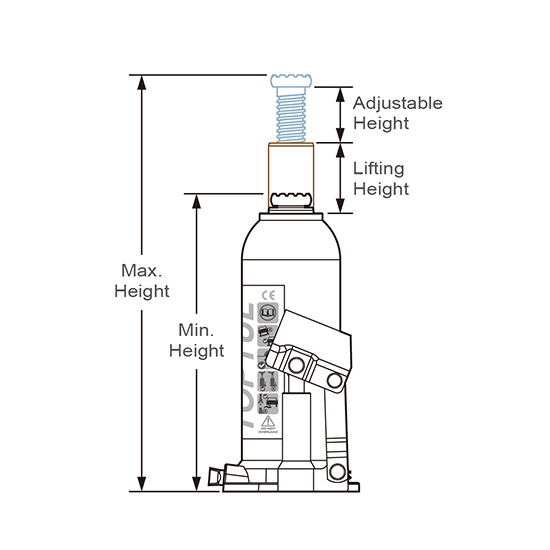

ITEM NO. Capacity
(Ton)
Min. Height
(mm)
Max. Height
(mm)
Lifting Height
(mm)
Adjustable Height
(mm)
Net Weight
(kg)
CTN
(pcs)
JHAB0102 2 168 316 100 48 2 6
JHAB0103 3 188 363 115 60 2.8 6
JHAB0105 5 207 402 125 70 3.7 4
JHAB0108 8 222 447 145 80 4.8 4
