Standard Combination Wrench 75° Offset – METRIC (Satin Chrome Finished)

ITEM NO: AAEN series

  •  Chrome Vanadium Steel Material
  •  Professional quality for maximum durability and corrosion resistance

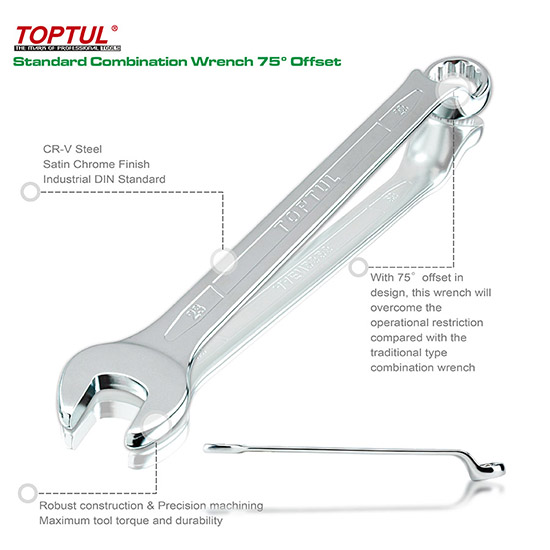

  •  75° offset ring end in design for operating easily in recess
  •  Satin Chrome Finished
  •  METRIC
DEALERS

Features

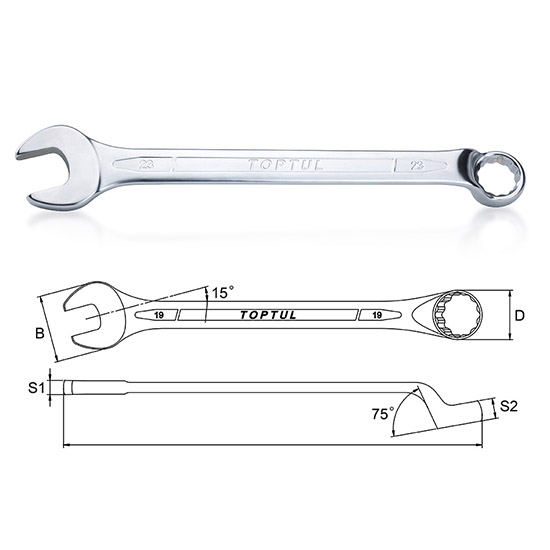

ITEM NO. SIZE
(mm)
L
(mm)
B
(mm)
D
(mm)
S1
(mm)
S2
(mm)
BOX
(PCS)
CTN
(PCS)
Satin
AAEN0606 6 110 14.1 10.4 3.7 5.2 10 320
AAEN0707 7 120 15.9 11.9 3.7 5.9 10 320
AAEN0808 8 130 18.3 13.4 4.2 6.2 10 320
AAEN0909 9 140 20.4 14.9 4.2 6.9 10 320
AAEN1010 10 150 22.3 16.4 4.7 7.2 10 160
AAEN1111 11 160 24.3 17.9 5.2 8.4 10 240
AAEN1212 12 170 26.8 19.4 5.2 8.6 10 160
AAEN1313 13 180 28.4 20.9 6.0 8.9 10 120
AAEN1414 14 190 31.0 22.4 6.2 9.1 10 120
AAEN1515 15 205 32.9 23.4 6.6 9.4 10 80
AAEN1616 16 215 34.7 24.9 6.8 10.4 10 80
AAEN1717 17 225 37.2 26.4 7.0 10.9 10 80
AAEN1818 18 235 39.2 27.9 7.8 11.4 10 80
AAEN1919 19 255 41.0 29.4 8.0 11.9 5 40
AAEN2020 20 255 41.0 29.6 8.0 11.9 5 40
AAEN2121 21 285 47.9 32.6 9.0 12.4 5 40
AAEN2222 22 285 47.9 32.6 9.0 12.4 5 40
AAEN2323 23 315 51.1 36.4 9.6 12.9 5 30
AAEN2424 24 315 51.1 36.6 9.6 12.9 5 30
AAEN2525 25 345 55.9 39.4 10.0 13.4 5 30
AAEN2626 26 345 55.9 39.6 10.0 13.4 5 30
AAEN2727 27 365 59.1 41.4 10.8 14.0 2 12
AAEN2828 28 365 59.1 41.6 10.8 14.0 2 12
AAEN2929 29 395 62.7 44.6 11.3 14.9 2 12
AAEN3030 30 395 62.7 44.6 11.3 14.9 2 12
AAEN3232 32 415 67.0 48.4 11.8 16.4 2 12
