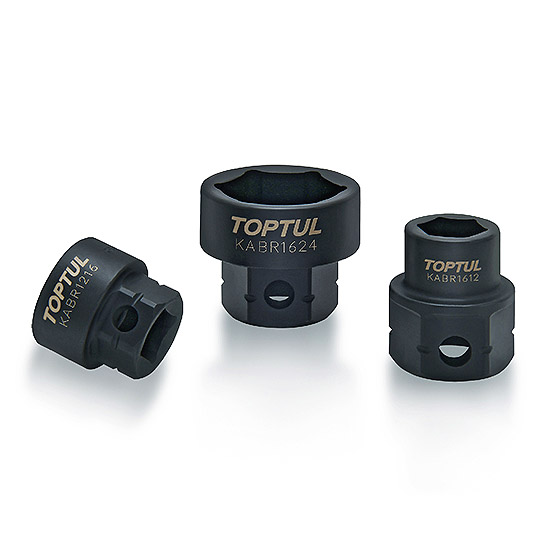

Stubby 6PT Flank Impact Sockets
Stubby 6PT Flank Impact Sockets
Stubby 6PT Flank Impact Sockets - Image 3

Stubby 6PT Flank Impact Sockets

  • ITEM NO: KABR series
  • Made of heat treated, durable Chrome Molybdenum Alloy Steel

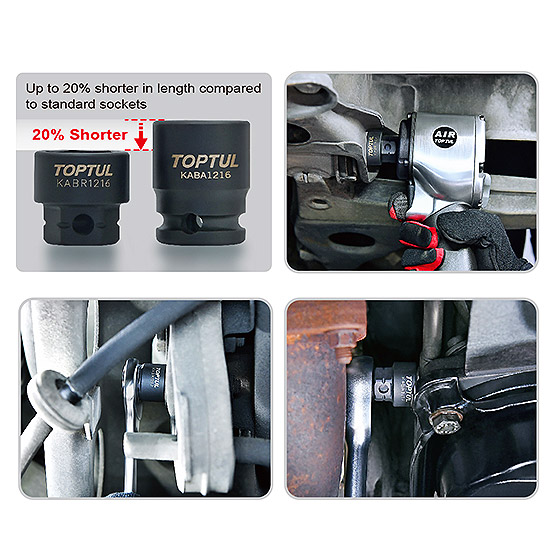

  • Extra low profile design for use in confined spaces
  • Hex shank on the socket for alternative use or increased access with a spanner
  • Black phosphate finish for corrosion resistance
  • Suitable for use with air/electric impact wrench or air ratchet wrench
  • Perfect for both machinery and automotive applications
  • ASME B107.4 / ASME B107.17 / ASME B107.110
DEALERS
Add to Enquiry
Categories: ,

Features

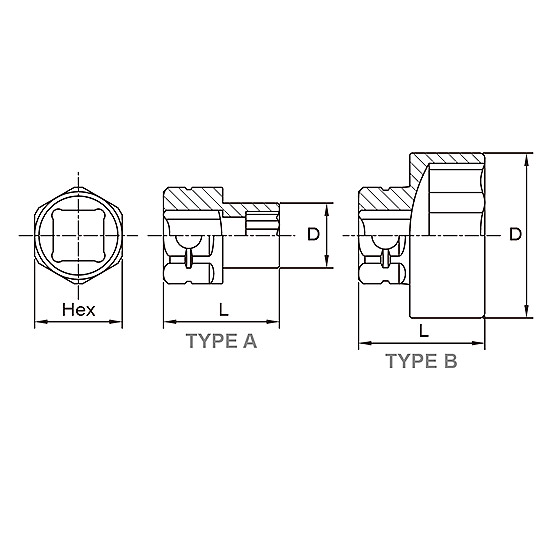

DRIVE TYPE ITEM NO. SIZE
(mm)		 L
(mm)		 D
(mm)		 Hex
(mm)		 BOX
(PCS)		 CTN
(PCS)
3/8″
10mm sq.
 A
 KABR1208 8 22.5 12.7 17 15 270
KABR1210 10 22.5 15.2 17 15 270
KABR1211 11 22.5 17 17 15 270
KABR1212 12 22.5 18 17 15 270
B
 KABR1213 13 22.5 20 17 15 270
KABR1214 14 22.5 21.5 17 15 270
KABR1215 15 22.5 22 17 15 270
KABR1216 16 22.5 23.5 17 15 270
KABR1217 17 22.5 24 17 15 240
KABR1218 18 22.5 25 17 15 240
KABR1219 19 22.5 26 17 15 240
KABR1221 21 23.5 28 17 15 240
KABR1222 22 24.5 30 17 15 240
KABR1224 24 24.5 32 17 15 240
1/2″
12.5mm sq.
 A
 KABR1610 10 28 16.7 22 15 240
KABR1611 11 28 18 22 15 240
KABR1612 12 28 19 22 15 240
KABR1613 13 28 20.2 22 15 240
KABR1614 14 28 21.5 22 15 240
KABR1615 15 28 23 22 15 240
KABR1616 16 28 24.5 22 15 240
B
 KABR1617 17 28 26 22 15 240
KABR1618 18 28 27 22 15 240
KABR1619 19 28 28 22 10 160
KABR1620 20 28 30 22 10 160
KABR1621 21 28 30 22 10 160
KABR1622 22 28 32 22 10 160
KABR1624 24 28 34 22 10 160
