Super-Torque Combination Wrench 15° Offset – SAE

 ITEM NO: ACEW series

  •  Chrome Vanadium Alloy Steel
  •  Robust construction design to work under extreme conditions
  •  High torque performance as over 2 times as ANSI & DIN standard
  •  Satin chrome finished for maximum durability and corrosion resistance
  •  SAE
DEALERS

Features

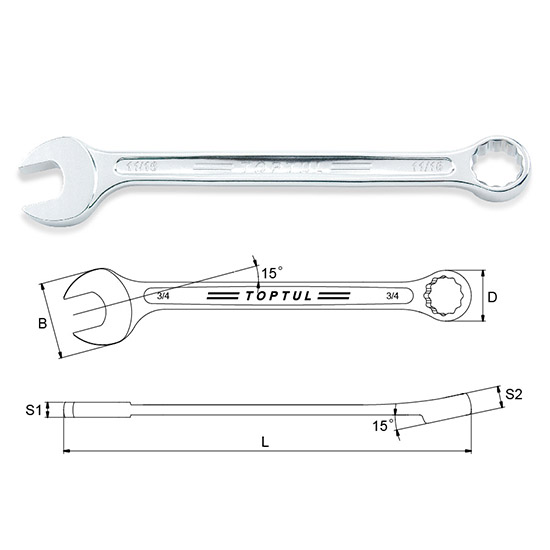

ITEM NO. SIZE
(inch)
L
(mm)
B
(mm)
D
(mm)
S1
(mm)
S2
(mm)
BOX
(PCS)
CTN
(PCS)
Satin
ACEW0808 1/4 104 14.2 10.0 3.9 6.0 10 320
ACEW1010 5/16 124 18.8 12.8 4.6 6.7 10 320
ACEW1111 11/32 131 21.2 14.2 4.7 7.1 10 320
ACEW1212 3/8 143 23.0 15.0 5.2 7.6 10 320
ACEW1414 7/16 151 24.0 16.9 5.5 8.1 10 240
ACEW1616 1/2 169 28.7 19.3 6.1 8.6 10 120
ACEW1818 9/16 180 31.0 21.1 6.5 9.5 10 120
ACEW2020 5/8 198 35.2 23.9 7.2 10.5 10 80
ACEW2222 11/16 206 37.0 25.3 7.5 10.9 10 80
ACEW2424 3/4 223 42.0 27.8 8.3 11.9 10 80
ACEW2626 13/16 236 43.5 29.5 8.5 12.4 10 80
ACEW2828 7/8 255 47.0 32.3 8.8 13.3 5 40
ACEW3030 15/16 274 51.3 35.0 9.5 14.0 5 40
ACEW3232 1 284 53.3 36.4 9.8 14.5 5 40
ACEW3434 1-1/16 304 58.3 39.2 10.3 16.0 5 30
ACEW3636 1-1/8 315 61.0 40.6 10.6 16.5 5 30
ACEW4040 1-1/4 355 67.9 46.1 12.4 19.0 5 20
