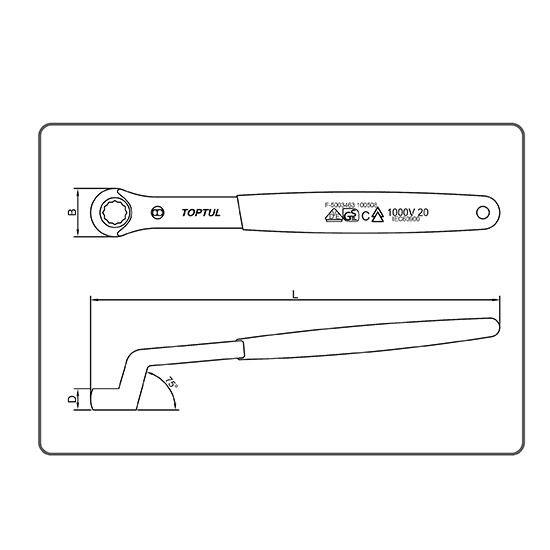

| ITEM NO. | SIZE (mm) | L (mm) | B (mm) | D (mm) | BOX (PCS) | CTN (PCS) |
| AAAW0808V4 | 8 | 165 | 19.5 | 8.5 | 10 | 160 |
| AAAW0909V4 | 9 | 165 | 19.5 | 8.5 | 10 | 160 |
| AAAW1010V4 | 10 | 175 | 20.5 | 9.5 | 5 | 80 |
| AAAW1111V4 | 11 | 185 | 22.0 | 10.5 | 5 | 80 |
| AAAW1212V4 | 12 | 185 | 22.0 | 10.5 | 5 | 80 |
| AAAW1313V4 | 13 | 205 | 26.0 | 11.0 | 5 | 40 |
| AAAW1414V4 | 14 | 205 | 26.0 | 11.0 | 5 | 40 |
| AAAW1515V4 | 15 | 215 | 28.5 | 12.5 | 5 | 40 |
| AAAW1616V4 | 16 | 220 | 31.0 | 13.0 | 5 | 40 |
| AAAW1717V4 | 17 | 220 | 31.0 | 13.0 | 5 | 40 |
| AAAW1818V4 | 18 | 235 | 34.5 | 14.0 | 5 | 40 |
| AAAW1919V4 | 19 | 235 | 34.5 | 14.0 | 5 | 40 |
| AAAW2121V4 | 21 | 255 | 39.0 | 15.5 | 5 | 40 |
| AAAW2222V4 | 22 | 255 | 39.0 | 15.5 | 3 | 24 |
| AAAW2424V4 | 24 | 285 | 44.5 | 16.5 | 3 | 24 |

VDE Insulated

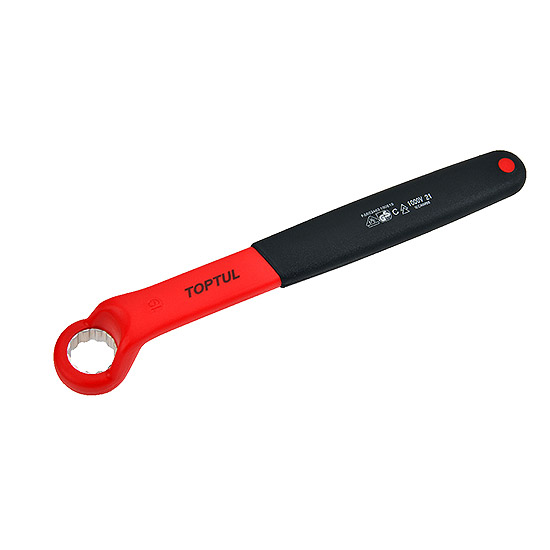

VDE Insulated Single Ring Wrench 75゚Offset
Item no. (15)
WhatsApp Enquiry
Your message includes the brand, product name, item number and this page link. Price and availability on request.
- ITEM NO: AAAW series
- Chrome Vanadium Steel Material
- High quality multi-layer TPR lining insulation
- Insulation meets VDE and international standard DIN EN/IEC 60900
- Safely working on and around live power up to 1000V AC
- Suitable for work on solar batteries and electric vehicles
- 75° offset ring end in design for operating easily in recess
- METRIC
