Hi-Performance Combination Wrench 15° Offset – SAE

ITEM NO: ACEX series

  •  Chrome Vanadium Alloy Steel
  •  Thin profile head and ring for easy access in confined spaces
  •  Light weight model
  •  High torque performance as over 1.6 times as ANSI & DIN standard
  •  Satin chrome finished for maximum durability and corrosion resistance
  •  SAE
DEALERS

Features

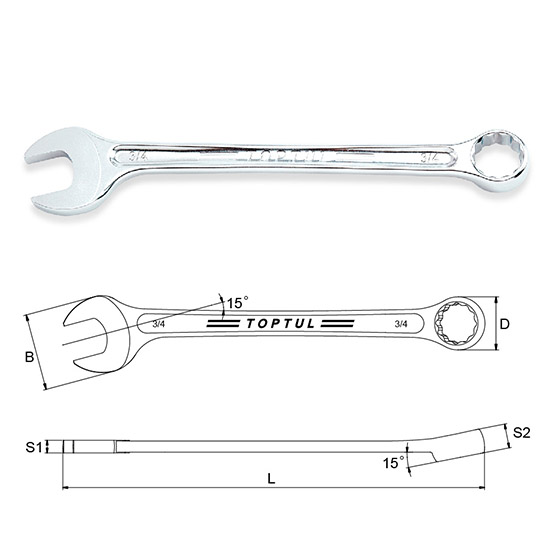

ITEM NO. SIZE
(inch)
L
(mm)
B
(mm)
D
(mm)
S1
(mm)
S2
(mm)
BOX
(PCS)
CTN
(PCS)
Satin
ACEX0808 1/4 104 14.1 10.2 3.2 6.0 10 320
ACEX1010 5/16 124 17.8 12.7 3.9 6.7 10 320
ACEX1111 11/32 131 19.9 14.0 4.0 7.1 10 320
ACEX1212 3/8 143 21.5 15.1 4.2 7.6 10 320
ACEX1414 7/16 151 23.9 16.7 4.7 8.1 10 240
ACEX1616 1/2 169 28.0 19.5 5.2 8.7 10 120
ACEX1818 9/16 180 30.0 20.7 5.3 9.5 10 120
ACEX2020 5/8 198 34.0 24.0 5.9 10.5 10 80
ACEX2222 11/16 206 36.0 25.4 6.0 10.9 10 80
ACEX2424 3/4 223 40.5 28.3 6.7 11.9 10 80
ACEX2626 13/16 236 42.5 29.5 6.9 12.5 10 80
ACEX2828 7/8 255 46.5 32.0 7.3 13.3 5 40
ACEX3030 15/16 274 50.0 35.2 8.0 14.0 5 40
ACEX3232 1 284 52.5 36.6 8.2 14.5 5 40
ACEX3434 1-1/16 304 56.0 39.5 8.6 16.5 5 30
ACEX3636 1-1/8 315 58.0 40.8 8.8 17.0 5 30
ACEX4040 1-1/4 355 66.0 46.1 10.0 19.5 5 20
